ZK-03B三相可控硅整流觸發器使用說明書

Operation Instructions for ZK-03B Three Phase Silicon controlled voltage-adjusting trigger

一、概述(General)

    ZK-03B可控硅調壓觸發器采用集成電路器件工藝制造，控制電路采用電壓負反饋連接，其輸出電壓穩定、抗干擾能力強，質量可靠。儀表面板設有“輸出設定”手動調節輸出電壓旋鈕以及限幅功能，以滿足用戶對控制系統的需要。

ZK-03B Silicon controlled voltage-adjusting trigger adopts integrate circuit technology, control circuit adopts the connection of voltage negative feedback, its output voltage is steady, and it has strong anti-interference ability and reliable quality. On the instrument face-plate, the knob of Output Setting manual adjustment output voltage has been set and it has the amplitude limit function to meet the need of the customer to the control system.

二、技術指標(Technical index)

1、輸入信號：0-200V。

 Input signal:0-200V

2、輸出信號：三相脈沖輸出，每相輸出正脈沖。

 Output signal: three phase pulse output, output positive pulse per phase

脈沖幅值≤4V（20負載）；

脈沖寬度≥0.2ms；

電壓調節范圍:0-220V。

Pulse amplitude ≤4V (20 load);

Pulse width≥0.2ms;

Range of voltage adjustment: 0-220V

3、配用可控硅：KP管（單向）1000A以下。

Equipped with thyristor: KP transistor (Unidirectional), less than 1000A

4、電源：~380V±10%，50HZ（三相三線）。

   Power source: ~380V±10%，50HZ (three phase three wire)

5、工作環境：溫度<50℃,相對濕度<85%.

Working conditions : temperature <50℃, relative humidity <85%.

6、重量: ≤2kg

   Weight: ≤2kg

7、消耗功率：約6W

     Consumption power: about 6W

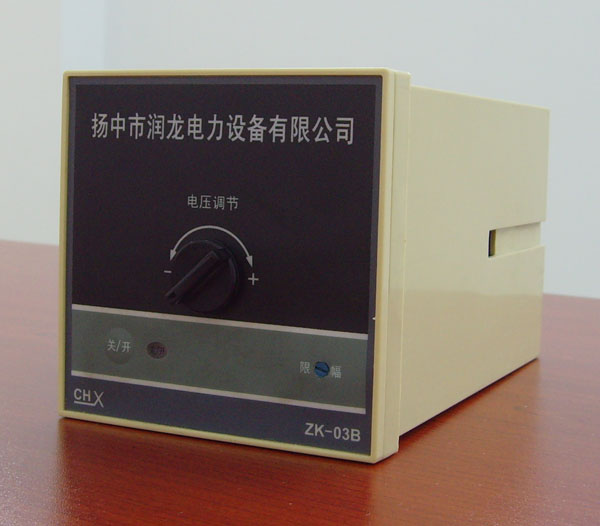

三、面板布置說明(Instructions for face -plate arrangement)



1、“電壓調節”---手動調節輸出電壓。

Voltage adjustment-----adjust the output voltage manually

2、“關/開”---啟、停觸發可控硅。

Off/on-----switch on/off the trigger thyristor

3、“限幅”---設定輸出電壓上限。

Amplitude limit-----Set the upper limit of output voltage

四、安裝與接線(Mounting and wiring)

1、 外形尺寸：（長×寬χ×深）：96×96×178

Overall dimension: (lengthXwidthXdepth); 96×96×178

安裝面板開孔尺寸：92×92

Hole size of mounting face-plate: 92X92

2、儀表接線端子如圖所示



   Instrument wiring terminals as the following diagram

3、 接線端子與電路連接（僅供參考）

Wiring terminals and circuit connection (only for reference)

圖中A、B、C、AG、BG、CG、分別與儀表端子號對應連接。

A, B, C, AG, BG, CG in the diagram should be corresponding to the instrument terminals Number.



說明：電源電纜按相序連接。

Note: The cable of the power source should be connected according to the phase sequence.

五、儀表的使用方式(Usage of instrument)

1、查各接線端子接線無誤、可接通電源，將“輸出調節”旋紐逆時針旋到始點。

   After examining every wiring terminals being wired correctly, switch on the power source and revolve the knob of Output Adjustment anticlockwise to the position of the initial point.

2、“關/開”鍵，“關/開”工作指示燈亮。

   Off/On key, Off/On running indication light is on.

3、 調整“輸出調節”旋紐，調整至現場需要的輸出電壓（必須接入負載）。

Adjust the knob of Output Adjustment, adjust the required output voltage on site (the load must be connected).

4、 再按“關/開”鍵，儀表停止工作。

Press the key of Off/On again, the instrument will stop running.

5、 儀表具有斷電自動關機功能。

The instrument has the cut-off function automatically after power-off.
